About

Our solutions allow you to accurately map utility pipelines and securely manage your data, helping you to avoid power cable damages, downtime and added expenses.

Our tools are not limited by ground conditions, duct material type or satellite connections.

Our Tool

Following assembly, each tool is calibrated to achieve optimal accuracy using a proprietary calibration robot. The robot moves the tool through over 440 static positions and dynamic moves in an inclination range between -60° and +60° while rotating 360° around its X-axis and 360° around its Y-axis.

As a final precision test the tool is repeatedly passed through a fixed test track to ensure all mapping tools leave the production floor with a guaranteed calibrated accuracy of .03% XY and .01% Z as a percentage of pipe length.

Our Software

Raw data Is uploaded to the post process software to establish the specific pipeline position based on accurately logged entry and exit coordinates. The software analyzes changes In X, Y and Z position. Data processing requires only minutes, allowing our trained field experts to map up to 8 duct segments per day.

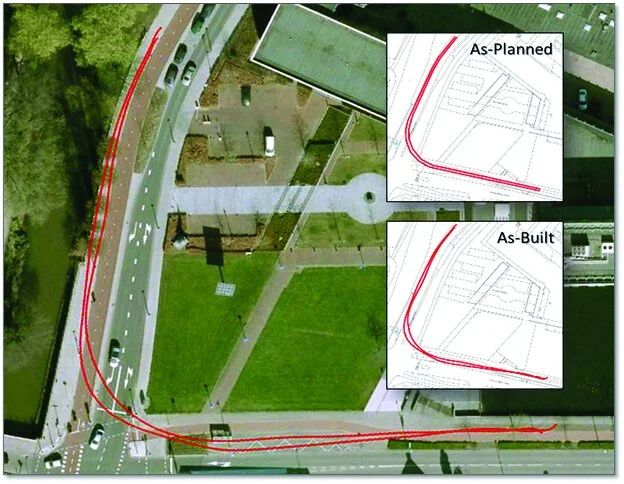

Our proprietary software provides powerful and accurate analytics, profiling, audit reports and as-built maps. (See Figure 1 below.)

Output file formats meet GIS standards: AutoCAD, xlsx, csv, xml and bmp.
